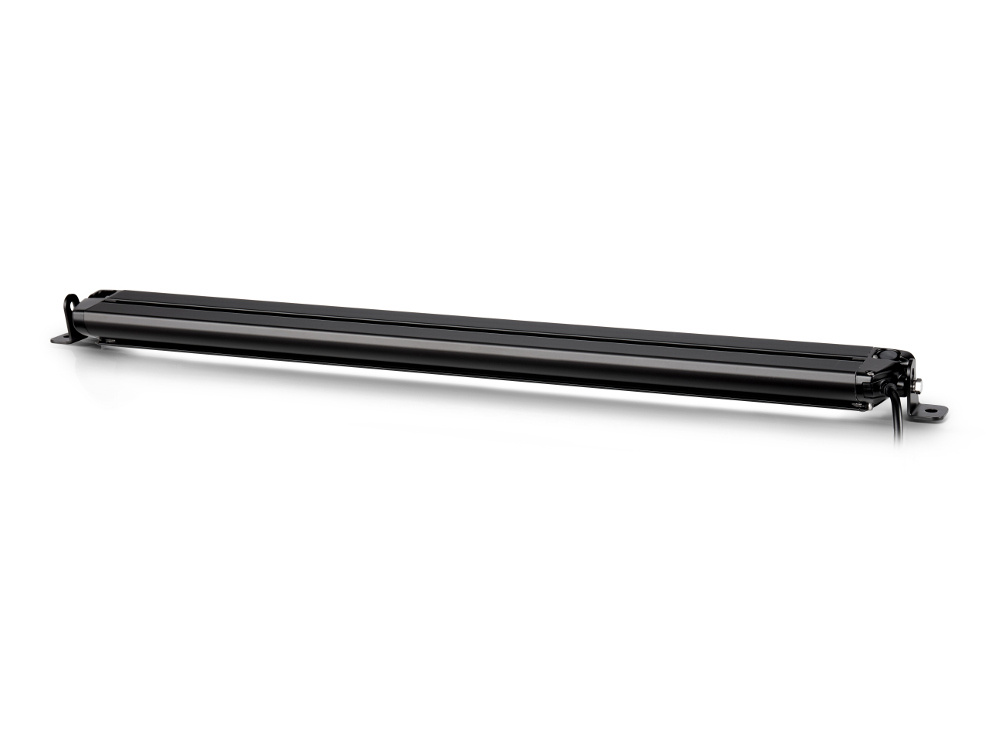

Lazer Linear 24 Flood

Description

Designed and engineered specifically for industrial sectors, the Linear-24 Flood challenges conventional work light solutions, offering outstanding lighting performance optimised for heavy machinery. Like all Lazer products built in the UK, the light boasts exceptional durability and reliability, even in the harshest environments, alongside high operational safety.

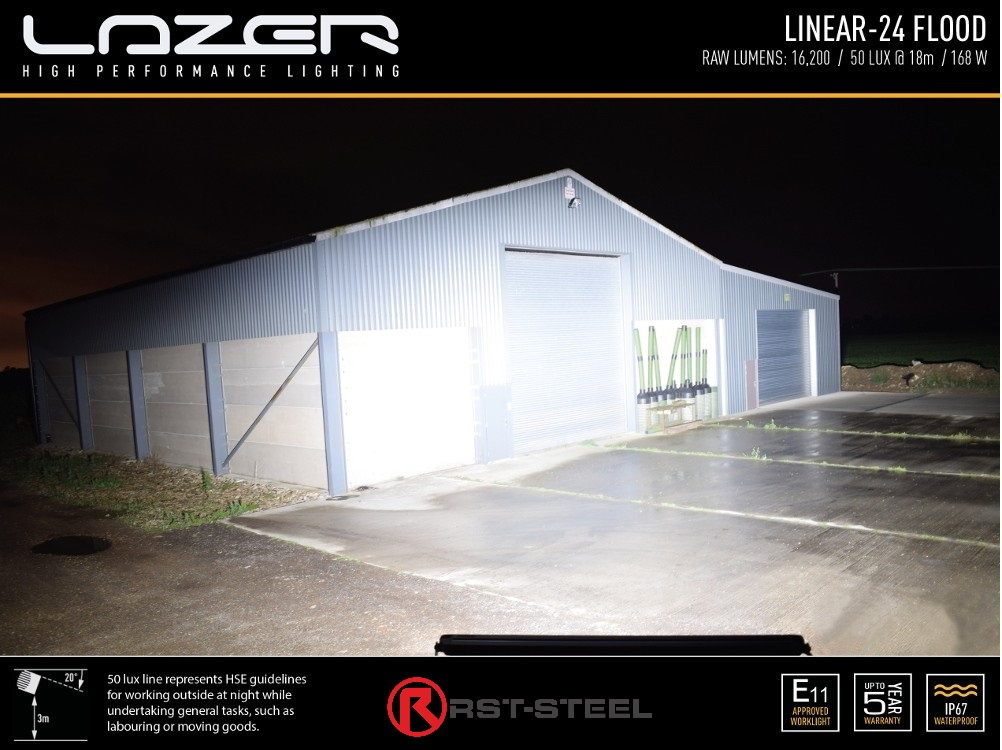

Adopting the same high-output LED arrangement as found in our Linear Elite range, the Linear-24 Flood produces 16,200 raw lumen, and which combined with a customised assembly of ultra-reflective, vacuum-metallised optics, delivers ‘zonal’ lighting perfectly aligned to work cabs, whether mining or construction, forestry or agriculture. On the one hand the high intensity lighting provides a simply unmatched level of illumination in the immediate area in front of the cab, while the length of the light bar itself enables a spread of light to the sides which makes for a safer and more productive work environment. At 5000 kelvin, the colour temperature of the light is also proven to improve sharpness and definition of the immediate surroundings, while also being comfortable to operate with for longer periods of time.

Product Features

• Utilises the latest, highly efficient LED technology.
• Customised arrangement of vacuum-metallised optics delivers ‘zonal’ lighting.
• Light output optimised for exceptional levels of illumination in immediate (<20m) working environment.

• Supplied with stainless steel, side mounting brackets.
• Electronic thermal management

• ‘Unbreakable’ polycarbonate lens

• IP67 watertight

• 2 year warranty (5 year for Automotive/Commercial Fleet applications)

• Supplied with male/female 2-pin Deutsch connectors

• Designed & manufactured in Britain

Technical Specifications:

Voltage Range (DC): 10-32V

LED Life: 50,000 hours

Colour Temperature: 5,000 Kelvin

Weight: 1500 gr

HIGH BEAM FUNCTION



Total Luminous Flux: 16200 Lm

Total Driver ‘FOV’ Flux: 11534 Lm

Colour Temperature: 5000K

Number of High Output LEDs: 48

Power Consumption: 168 Watts

Current Draw (at 14.4V): 11.7 Amps

CERTIFICATION

Work Lamp : ECE R10

IP Rating: IP67 / IP69K

Salt Spray Test: ISO 9227 (250H)

EMC Protection: CISPR-25: 2008 (Class 3)

OPERATING CONDITIONS

Shock: TBC

Vibration (BS EN 60068) : 10Hz-2000Hz, 10gn

Operating Temperature: -40deg C … +90degC

DIMENSIONS

Width 682 mm

Depth 62 mm

Height 40 mm

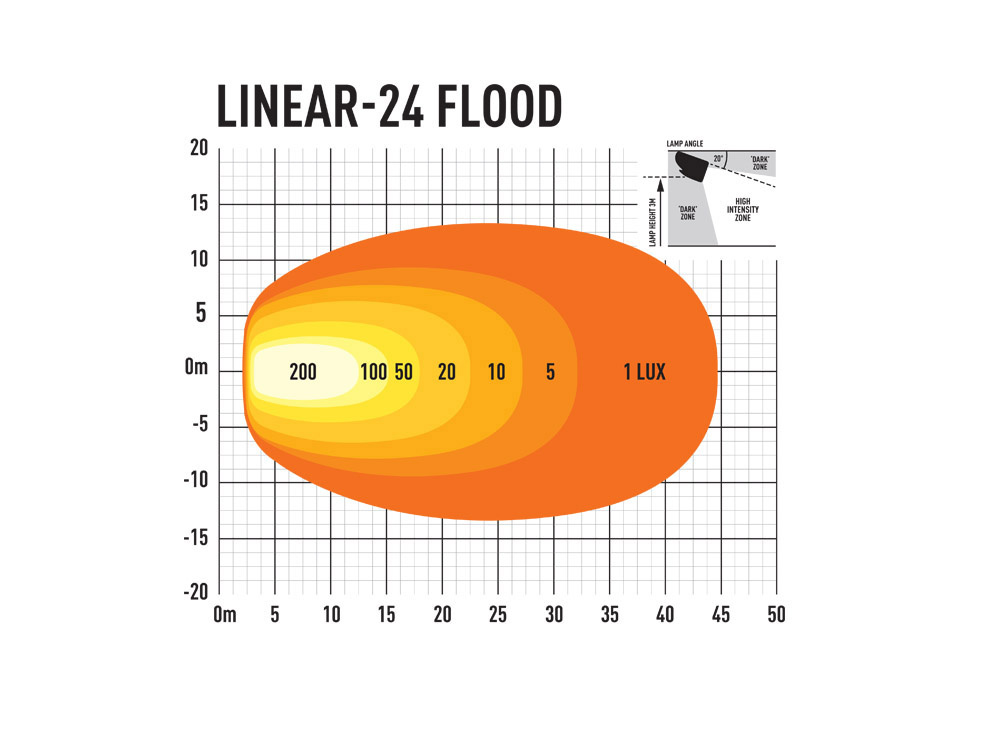

PHOTOMETRIC DATA

1Lx Line @ 44m

5Lx Line @ 33m

20Lx Line @ 23m

50Lx Line @ 18m*

Whats Included:

Linear 24 Flood

Anti-Theft Side Mount
