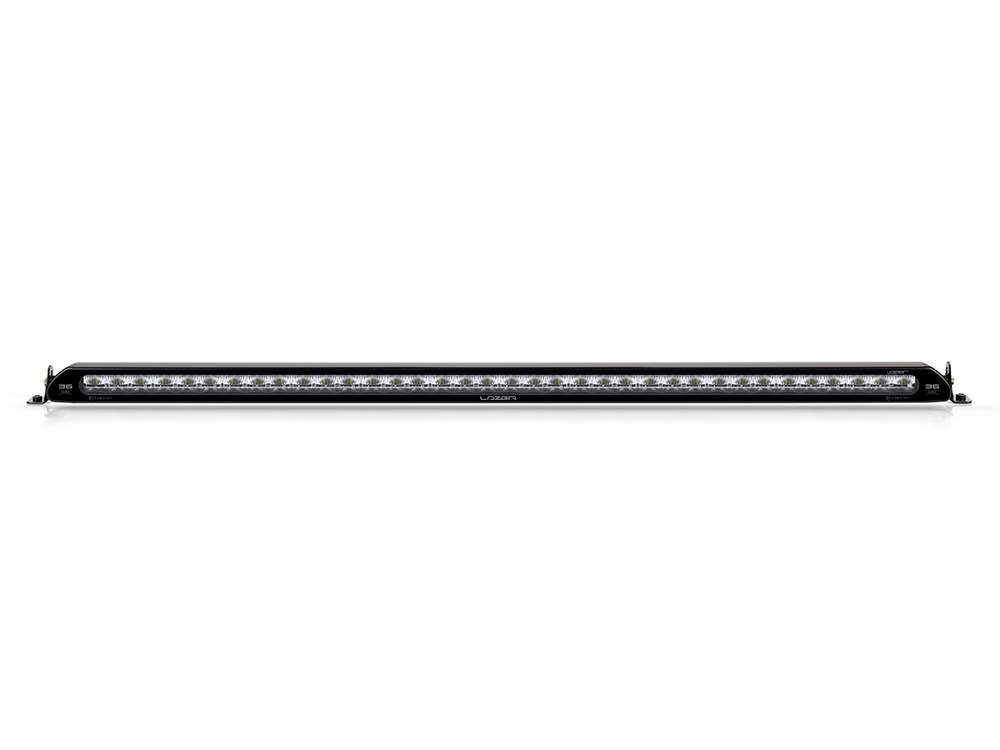

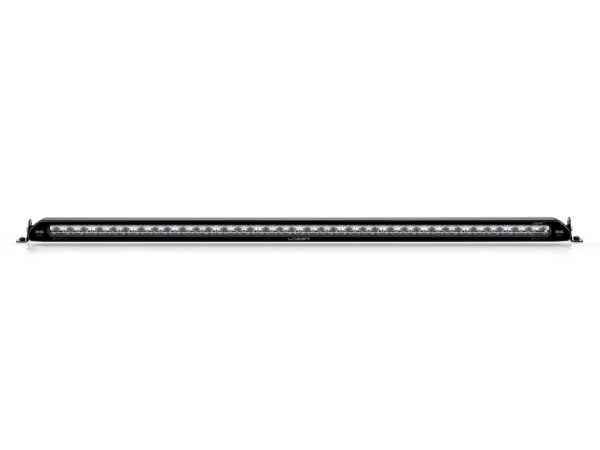

Lazer Linear 36 STD

Description

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

Product features:

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP67 watertight
• 5 year warranty
• Designed and manufactured in UK

Technical Specifications:

Voltage Range: 10-32V

Weight: 2700 gr

Total luminous Flux: 13500 lm

Power Consumption: 126 Watts

Number of High Output LEDs:  36

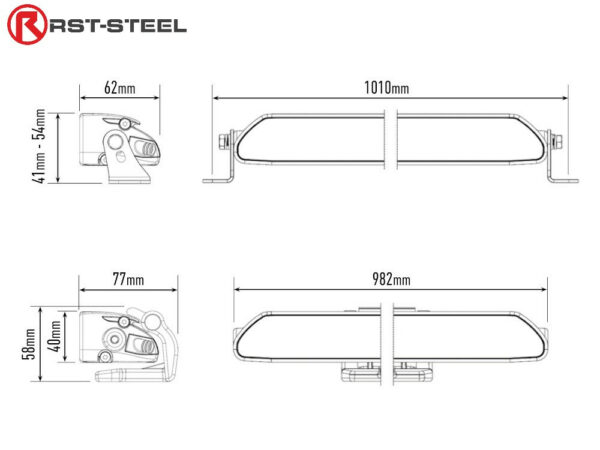

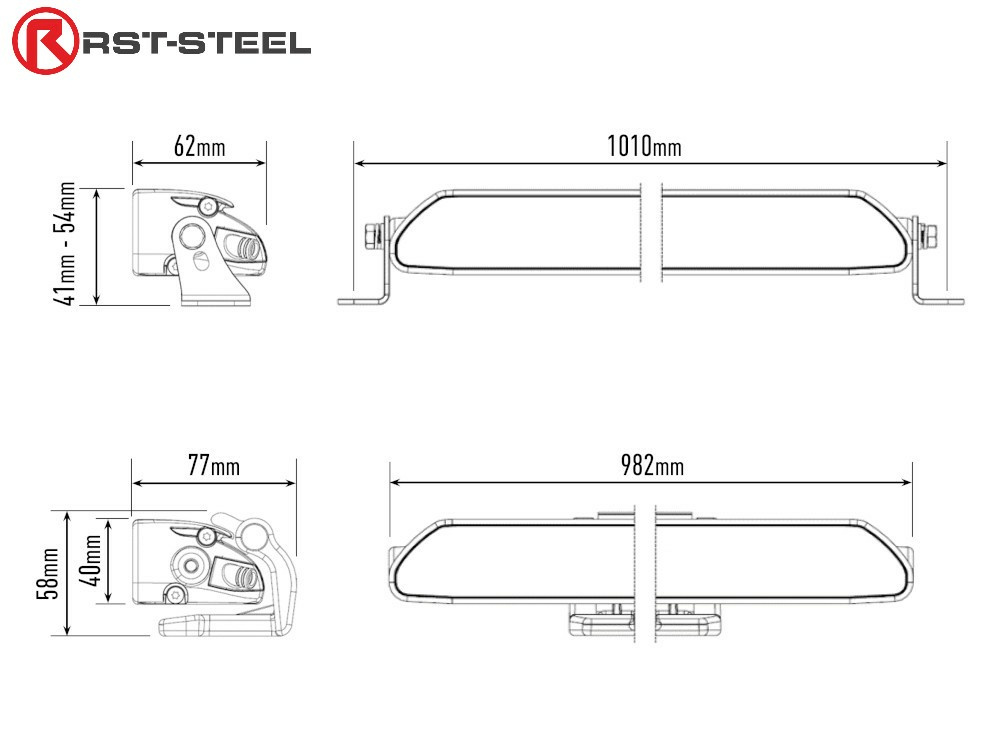

DIMENSIONS:

    Width: 986 mm

    Depth: 62 mm

    Height: 40 mm

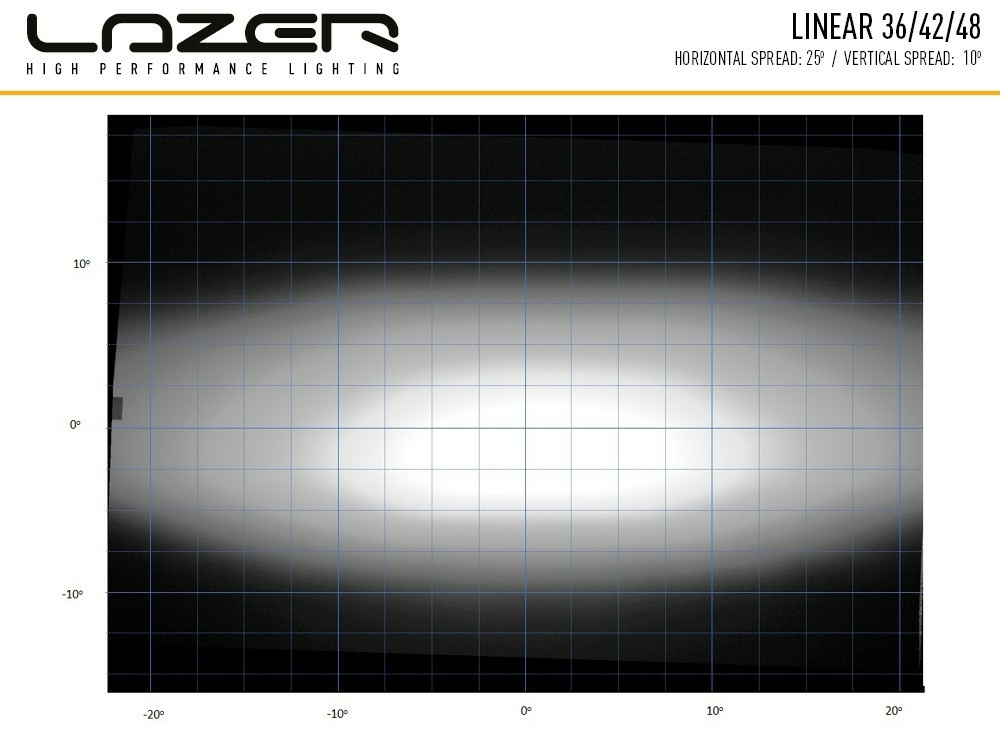

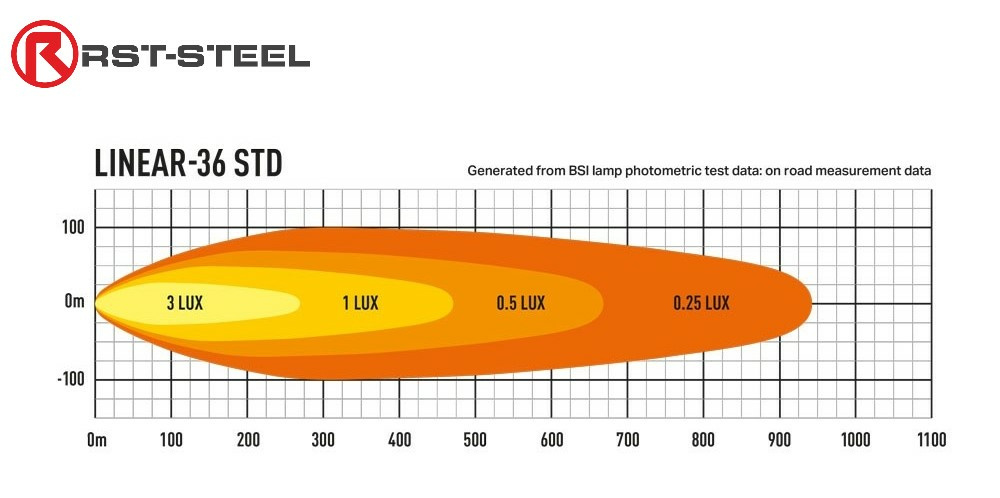

PHOTOMETRIC DATA:

    Horizontal Beam Angle: 50 Degrees

    0.25 lx Line: 940 metres

    0.5 lx Line: 665 metres

    1 lx Line: 470 metres

    3 lx Line: 271 metres

CERTIFICATION:

    High Beam ECE R112

    ECE Reference: 2 x 30

What’s included:

Linear-36 Elite LED Lamp

Anti-theft side mount

Installation instructions
